Intel 800 MHz IOP348 I/O processor with SAS Controller

Default 256MB DDR2-533 ECC SDRAM Cache

Battery Backup Module ready (Option)

RAID level 0, 1, 10, 3, 5, 6 or JBOD

Multiple RAID selection

Online Array roaming

Online RAID level/stripe size migration

Online capacity expansion and RAID level migration simultaneously

Online volume set growth

Instant availability and background initialization

Automatic drive insertion / removal detection and rebuilding

Greater than 2TB per volume set (64-bit LBA support)

Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets

Login record in the event log with IP address and service (http, telnet and serial)

Support spin down drives when not in use to extend service life (MAID)

Support NTP protocol to synchronize RAID controller clock over the on-board Ethernet port

Battery Backup Module ready (Option)

Model Name

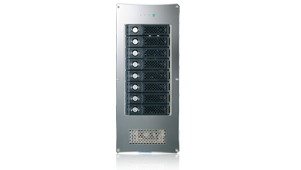

EW-762A-1222

Host Interface

PCI-Express x8 Host Card

Drive Interface

8 x 3.5” SAS/SATAII drives

Expansion Slot

Two PCI-E 8X & One PCI-E 4X

On Board Cache

256MB DDR2-533 ECC SDRAM

Power Supply

Single 300W Power Supply (Low Noise)

Dimension

230(D) x 156(W) x 310(H) mm

Cooling

Two 80x80x25 mm Fans (Hot-Swappable)

Weight

7KG
