Intel 800 MHz IOP348 I/O processor with SAS Controller

Default 256MB DDR2-533 ECC SDRAM Cache

Battery Backup Module ready (Option)

RAID level 0, 1, 10, 3, 5, or JBOD

Multiple RAID selection

Online Array roaming

Online RAID level/stripe size migration

Online capacity expansion and RAID level migration simultaneously

Online volume set growth

Instant availability and background initialization

Automatic drive insertion / removal detection and rebuilding

Greater than 2TB per volume set (64-bit LBA support)

Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets

Login record in the event log with IP address and service (http, telnet and serial)

Support spin down drives when not in use to extend service life (MAID)

Support NTP protocol to synchronize RAID controller clock over the on-board Ethernet port

Battery Backup Module ready (Option)

TurboBox-移动型包装

ExpressCard34 - Laptop/Notebook Adaptor Bandwidth : 2.5Gbps from Laptop

Multilane Screw / External PCIe x4 cable

TurboBox-台式计算机包装

PCI Express - Desktop Adaptor Bandwidth: 10Gbps from Host PCIe 1.0 x4 or: 20Gbps from Host PCIe 2.0 x4

External PCIe x4 cable / External PCIe x4 cable

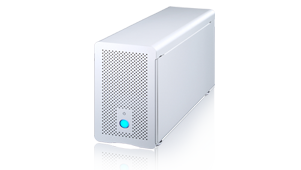

Model Name

EW-210A-1212

Host Interface

PCI-Express x4 Host Card or Express34 Card

Drive Interface

4 x 2.5” SAS/SATAII drives

Expansion Slot

Two PCI-E 8X & One PCI-E 4X

On Board Cache

256MB DDR2-533 ECC SDRAM

Power Supply

Single 220W Power Supply (Low Noise)

Dimension

371(D) x 110(W) x 200(H) mm

Cooling

One 80x80x25 mm Fans (Hot-Swappable) & one Blowers

Weight

5KG
