如果您是一个专业的内容创作人员，需要输出用于蓝光盘、网页和移动设备的H.264文件，您需要的是一个快速、灵活和高质量的强力编码发动机。Matrox CompressHD是第一块应用了Matrox MAX技术的超值H.264加速卡。它可用于安装了或是没安装I/O视频设备的系统，延长现有投资系统的使用寿命，令您以前所未有的速度输出高质量的H.264格式文件。这块小尺寸，半长度PCIe x1板卡可安装在基于Intel的Mac Pro和Apple Xserve系统中。马上去买一块Matrox CompressHD板卡，瞬间输出项目！

Matrox CompressHD implements Matrox MAX technology in an amazingly affordable H.264 accelerator card. It works in systems with or without a video I/O device and extends the life of your current system investment, giving you the power you need to deliver today's premium H.264 formats up to 5 times faster than software alone. This low profile, half-length PCIe x1 card fits into Intel-based Mac Pros and PC workstations and desktop systems. Get yourself a Matrox CompressHD card and deliver your projects in a fraction of the time!

Discover the benefits of Matrox MAX for your favorite app

Apple Compressor 4 Adobe Media Encoder Telestream Episode QuickTime apps

Turbocharge Apple Compressor

Deliver H.264 video up to 5 times faster without sacrificing quality!

If you're delivering H.264 content for the web, mobile devices, Apple TV, and Blu-ray discs, you know how painful it can be to wait for the long encoding times needed to create high-quality video files using software only. You might even be tempted to sacrifice quality for speed.

With Matrox MAX technology, you no longer need to even consider making that trade off. Matrox MAX technology is integrated directly into Apple Compressor to let you quickly and easily create your H.264 files from a variety of video sources including SD, HD, and RED proxy files up to 2K. There is no need for you to learn a new application or utility to take advantage of this game-changing technology.

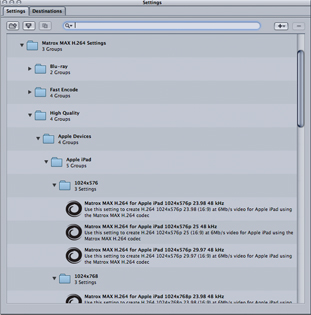

Working with MAX

You can use the three categories of Matrox MAX presets – Fast Encode, High-Quality, and Blu-ray – or you can create your own customized settings.

Matrox Fast Encode presets

Matrox Fast Encode presets use the MAX hardware and your CPU to deliver H.264 files faster than realtime. Quality is better than Compressor Single-pass.

Matrox High Quality presets

Matrox High Quality presets use the MAX hardware exclusively, thereby freeing up your CPUs for other tasks. Quality is comparable to Compressor Multi-pass.

Matrox Blu-ray presets

Matrox Blu-ray presets use the Matrox High Quality technology to create Blu-ray compliant H.264 files faster than realtime. The Matrox MAX hardware performs proper color space conversions from SD to HD as well as proper color space conversion from RGB to YUV to prevent gamma shift. Blu-ray compliant H.264 files can be created and authored directly using Apple Compressor. Files you created in Compressor can also be authored in other apps such as Adobe Encore or Roxio Toast without the need to re-encode. You should use H.264 level 4.0 if you want to create Matrox MAX H.264 files intended for mass replication of Blu-ray discs. You can use either H.264 level 4.0 or 4.1 if you want to author and burn individual copies that are compatible with Blu-ray disc players.

Customizable presets

Customizable presets let you create tweak the power of MAX to fit your own unique requirements. You can choose to encode at a constant bit rate (CBR), a variable bit rate (VBR), or a constant quality, then choose other parameters to perfect the encode.

Constant bit rate

CBR ensures that the bit rate remains stable; quality varies depending on the complexity of each frame. This is the desired setting when content is delivered over a pipe with a fixed bandwidth. CBR ensures quality is maximized over such a connection.

Variable bit rate

VBR targets an average bit rate. Matrox MAX squeezes out the highest quality possible for each frame while respecting the average bit rate you choose. It analyzes each video frame and determines which frames require more or less compression data. This is the preferred mode when the lowest overall file size matters, but you do not want to sacrifice quality.

Constant quality

Constant quality lets you deliver your desired quality on each frame. Matrox MAX analyzes each video frame to deliver the targeted quality, bit rate varies while keeping the lowest possible bit rate.

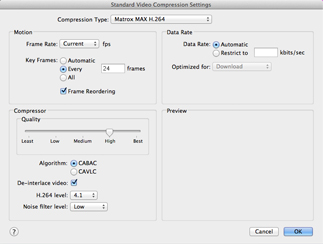

Adjustable parameters

Noise filtering saves bits by reducing high frequencies in the video.

Hardware deinterlacing ensures high-quality encodes of interlaced SD and 1080i source material

Sample rate monitoring verifies compliance with targeted data rate

Data rate slider produces smoother or more abrupt transitions

Frame sizes let you choose even resolutions ranging from 64x64 to 1920 x 1088.

Bit rates from 100 Kb/s to 50 Mb/s are supported.

Frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 are supported.

GOP structure controls are provided.

Profiles let you choose Baseline (CAVLC) and main (CABAC).

Levels are selectable: 2.0, 3.0, 4.0, 4.1, and 4.2.

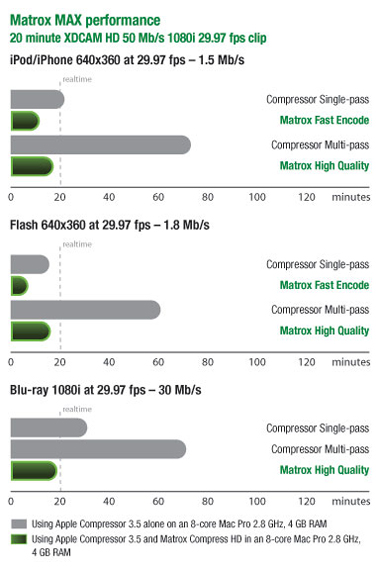

Matrox MAX performance for Apple Compressor

Turbocharge Adobe Media Encoder

Deliver H.264 video up to 5 times faster without sacrificing quality!

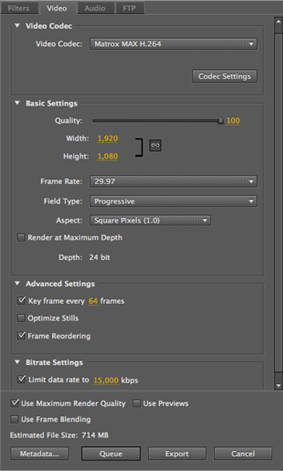

With Matrox MAX technology, you no longer need to even consider making that trade off. You quickly and easily create your H.264 files from a variety of video sources including SD, HD, and RED proxy files up to 2K. There is no need for you to learn a new application or utility to take advantage of this game-changing technology.On the PC, Matrox MAX technology is integrated directly into Adobe Media Encoder. On the Mac, Adobe Media Encoder makes use of Matrox MAX technology as a QuickTime codec.

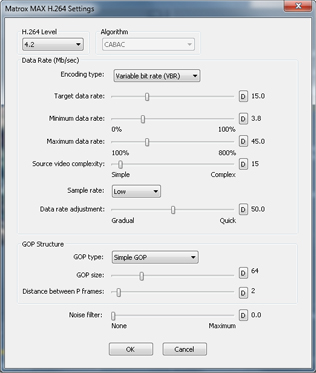

Working with Adobe Media Encoder and Matrox MAX for PC

On a Windows-based systems, Matrox MAX technology is accessible through Adobe Media Encoder or directly from Adobe Premiere Pro timelines where you can export your editing sequence to an H.264 file using the Matrox export function. There are two categories of Matrox MAX presets – Matrox MP4 or Matrox H.264 Blu-ray – or you can create your own customized settings.
